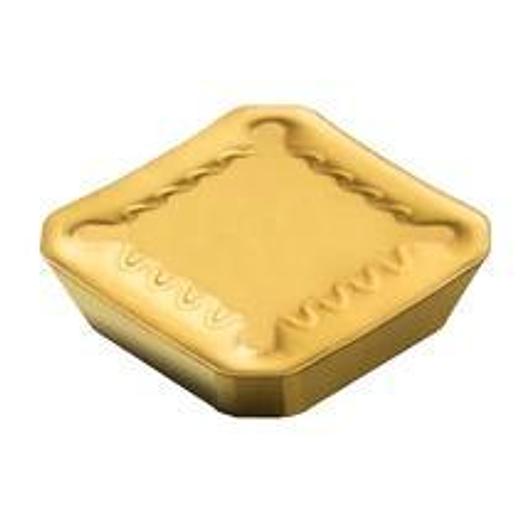

Hex milling insert - face milling 45°/60° (45°/30°)

indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 1.5 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 45 deg
• fz max: 0.20999999999999999 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.17000000000000001 mm
• Manufacturer's ArtNo: SEER 12 03 AZ-WL 4030
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1.6 mm
• Cutting length, limited (LE): 9.6 mm
• Cutting length, max. (APMX): 6.4 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SE1203AZ
• Cutting direction (HAND): N
• Grade: 4030
• Chip breaker, manufacturer designation (CBMD): WL
• Substrate Type: WC
• TMC Order: 1~2
• vc max: 200~275 m/min
• vc min: 170~230 m/min
• vc rec: 180~245 m/min
• Material classification level 1(TMC1): K~P
• Corner radius R: 1.5 mm
• Grade: 4030
• All ISO application areas: P|K
