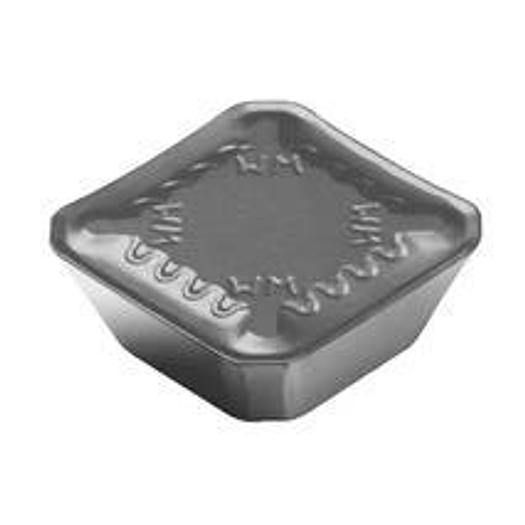

Hex milling insert - face milling 45°/60° (45°/30°)

indexable insert for milling

• Application Area: MU
• Corner radius (RE): 1.5 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 45 deg
• fz max: 0.25 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.17000000000000001 mm
• Manufacturer's ArtNo: SEKR 12 04 AZ-WM 530
• Manufacturer: SANDVIK COROMANT
• IC Code: 18600
• ISO Cutting Tool Material: HT
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 1.6 mm
• Cutting length, limited (LE): 9.6 mm
• Cutting length, max. (APMX): 6.4 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SE1204AZ
• Cutting direction (HAND): N
• Grade: 530
• Chip breaker, manufacturer designation (CBMD): WM
• Substrate Type: CERMET
• TMC Order: 1~2~3
• vc max: 295~325~80 m/min
• vc min: 225~260~60 m/min
• vc rec: 255~290~70 m/min
• Material classification level 1 (TMC1): H~M~P
• Corner radius R: 1.5 mm
• Grade: 530
• All ISO application areas: M|K|N
