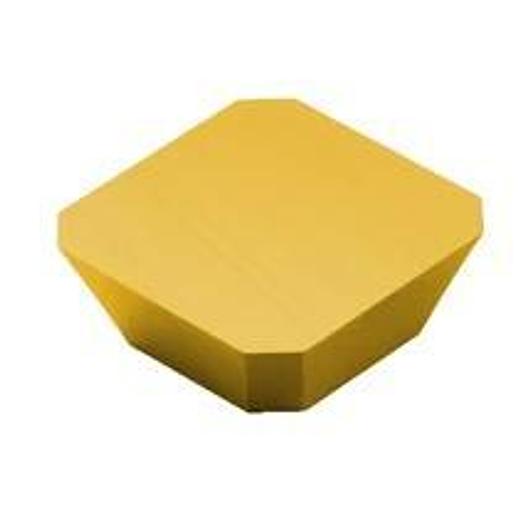

Hex milling insert - face milling 45°/60° (45°/30°)

indexable insert for milling

• Coating Process Type: CVD
• Corner radius (RE): 1.2 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 45 deg
• Manufacturer's ArtNo: SEMN 12 04 AZ 235
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting edge width (BS): 2 mm
• Cutting length, limited (LE): 9.6 mm
• Cutting length, max. (APMX): 6.4 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SE1204AZ
• Cutting direction (HAND): N
• Grade: 235
• Substrate Type: WC
• Corner radius R: 1.2 mm
• Grade: 235
