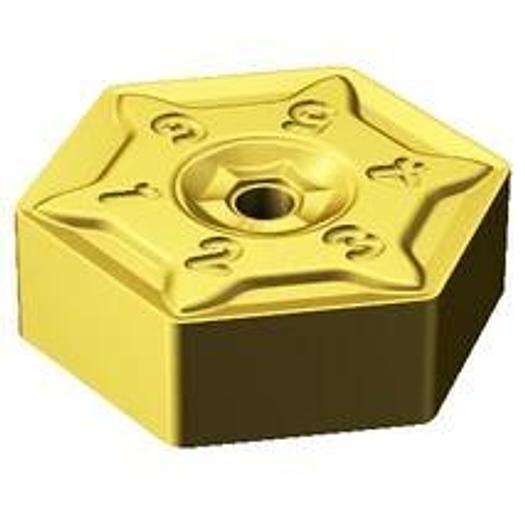

CoroMill S-60 turning insert, negative - KW geometry

CoroMill® S-60 indexable insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 0.8 mm
• Inscribed circle (IC): 16.2 mm
• Setting angle, main cutting edge (KRINS): 60 deg
• fz max: 0.28999999999999998 mm
• fz min: 0.10000000000000001 mm
• fz rec: 0.14999999999999999 mm
• Manufacturer's ArtNo: HNEF 09 05 08-KM K20W
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 8.9 mm
• Cutting length, max. (APMX): 6 mm
• Cutting edge height (S): 5.56 mm
• Cutting insert shape (SC): H
• Cutting insert size and shape (CUTINT_SIZESHAPE): Mill S-60 HN0905xxxN
• Cutting direction (HAND): N
• Grade: K20W
• Chip breaker, manufacturer designation (CBMD): KM
• Substrate Type: WC
• TMC Order: 1
• vc max: 200 m/min
• vc min: 145 m/min
• vc rec: 185 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 0.8 mm
• Chipbreaker Manufacturer designation CBM: KM
• Cutting edge height: 5.56 mm
• All ISO application areas: K
