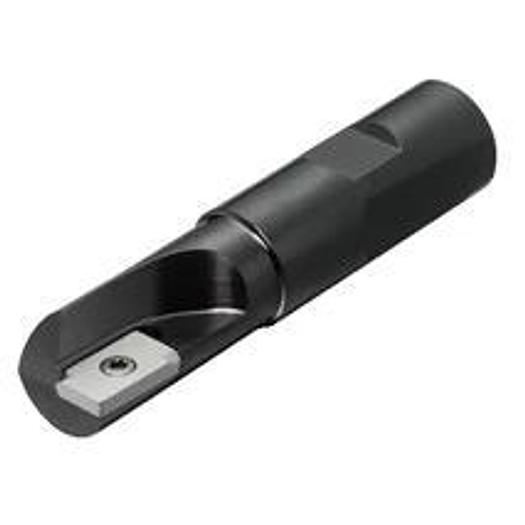

U-Max slot milling cutter

U-Max® corner milling cutter

• Adapter interface machine direction (ADINTMS): Whistle Notch/Weldon (DIN1835-B/E) -metric: 16
• Number of cutting parts (CICT): 1
• Number of effective cutting edges, circumferential (ZEFP): 1
• DCONMS: 16 mm
• Torque (TQ): 0.9 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 18900 1/min
• Immersion depth, max.(AZ): 10 mm
• Immersion angle, max.(RMPX): 90 deg
• Functional length (LF): 78 mm
• Manufacturer's ArtNo: R216.2-716
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 16 mm
• Cutting length, max. (APMXEFW): 8 mm
• Cutting length, max. (APMXFFW): 10 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: Mill Umax 216.2-10-C (R216.2-100204)
• Tolerance shaft diameter (TCDCON): h6
• Tool design (BMC): Steel
• Center cutting ability (CCC): 1
• Cutting diameter: 16 mm
• Functional length L: 78 mm
• Adapter interface machine direction ADINTM: Whistle Notch/Weldon (DIN1835-B/E) -metric: 16
