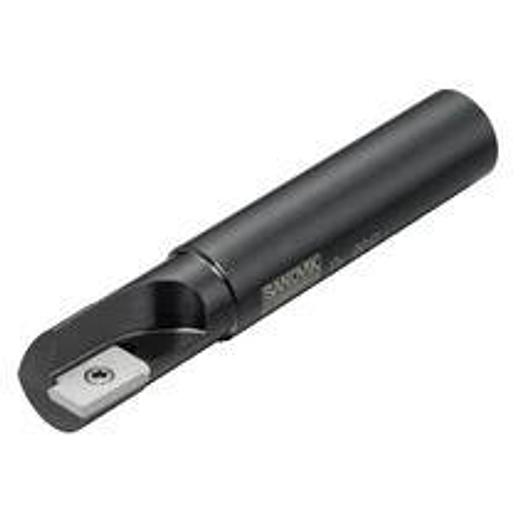

U-Max slot milling cutter

U-Max® corner milling cutter

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 32.0
• Number of cutting parts (CICT): 1
• Number of effective cutting edges, circumferential (ZEFP): 1
• DCONMS: 32 mm
• Torque (TQ): 2 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 9460 1/min
• Immersion depth, max.(AZ): 15 mm
• Immersion angle, max.(RMPX): 90 deg
• Functional length (LF): 130 mm
• Manufacturer's ArtNo: R216.2-032
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 32 mm
• Cutting length, max. (APMXEFW): 16 mm
• Cutting length, max. (APMXFFW): 15 mm
• Cutting direction (HAND): R
• Part 2 of the Cutting Part Interface Identification (CUTIN: Mill Umax 216.2-07-C (R216.2-07T3)
• Tool design (BMC): Steel
• Center cutting ability (CCC): 1
• Cutting diameter: 32 mm
• Functional length L: 130 mm
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 32.0
