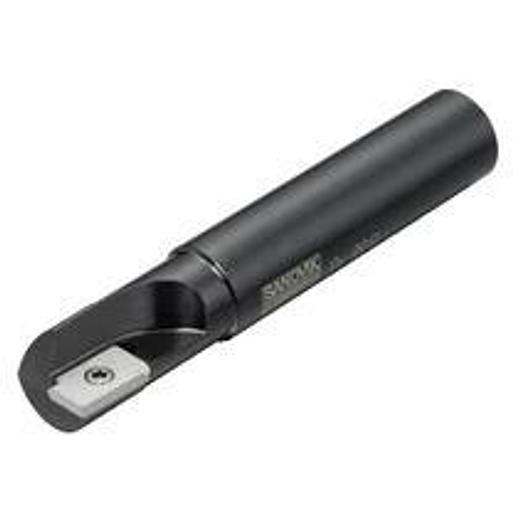

U-Max slot milling cutter

U-Max® corner milling cutter

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 25.0
• Number of effective cutting edges, circumferential (ZEFP): 1
• DCONMS: 25 mm
• Torque (TQ): 2 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 12095 1/min
• Immersion depth, max.(AZ): 15 mm
• Immersion angle, max.(RMPX): 90 deg
• Functional length (LF): 120 mm
• Manufacturer's ArtNo: R216.2-025
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 25 mm
• Cutting length, max. (APMXEFW): 12.5 mm
• Cutting length, max. (APMXFFW): 15 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: Mill Umax 216.2-15-P (R216.2-15T308-1)
• Tool design (BMC): Steel
• Center cutting ability (CCC): 1
• Cutting diameter: 25 mm
• Functional length L: 120 mm
• Adapter interface machine direction ADINTM: Cylindrical shank without clamping features -metric: 25.0
