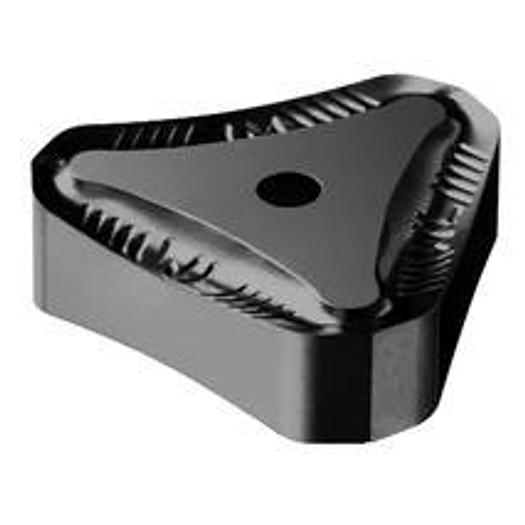

indexable inserts for Sandvik AUTO milling cutters

indexable inserts for Sandvik AUTO milling cutters

$100 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

Auto milling indexable insert for roughing


  • Application Area: MU
  • Coating Process Type: CVD
  • Corner radius (RE): 2 mm
  • Inscribed Circle (IC): 12.7 mm
  • Setting angle, main cutting edge (KRINS): 45 deg
  • fz max: 0.41999999999999998 mm
  • fz min: 0.10000000000000001 mm
  • fz rec: 0.23999999999999999 mm
  • Manufacturer item number: TNEF 12 04 AN-WL 3040
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • face radius (BSR): 90 mm
  • Cutting edge width (BS): 1.75 mm
  • Cutting length, limited (LE): 12 mm
  • Cutting length, max. (APMX): 6 mm
  • Cutting edge height (S): 4.7625 mm
  • Cutting insert shape (SC): T
  • Cutting insert size and shape (CUTINT_SIZESHAPE): TN1204AN
  • Cutting direction (HAND): N
  • Grade: 3040
  • Chip breaker, manufacturer designation (CBMD): WL
  • Substrate Type: WC
  • TMC Order: 1~2
  • vc max: 225~290 m/min
  • vc min: 140~185 m/min
  • vc rec: 185~240 m/min
  • Material classification level 1(TMC1): K~P
  • Corner radius R: 2 mm
  • Grade: 3040
  • Cutting edge height: 4.7625 mm
  • All ISO application areas: P|K|H


Specifications

ManufacturerSANDVIK COROMANT
ModelTNEF1204ANWL3040
Year2024
ConditionNew
Serial Number520 TNEF 12 04 AN-WL 3040
Stock Number.
