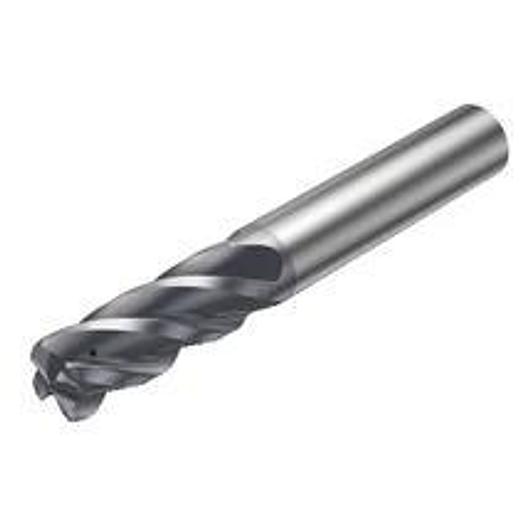

End mill square shape, with corner radius and center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for heavy-duty

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 12
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 12 mm
• Helix angle (FHA): 38 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 43800 1/min
• Corner radius (RE): 3 mm
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 6 mm
• Functional length (LF): 83 mm
• Manufacturer item number: 2S342-1200-300CMA 1740
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant pressure (CP): 20 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 26 mm
• Back rake angle (GAMP): 10.5 deg
• Cutting diameter (DC): 12 mm
• Cutting length, max. (APMX): 26 mm
• Side rake angle (GAMF): 10.5 deg
• Grade: 1740
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 12 mm
• Cutting length: 26 mm
• Functional length L: 83 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: M|S
