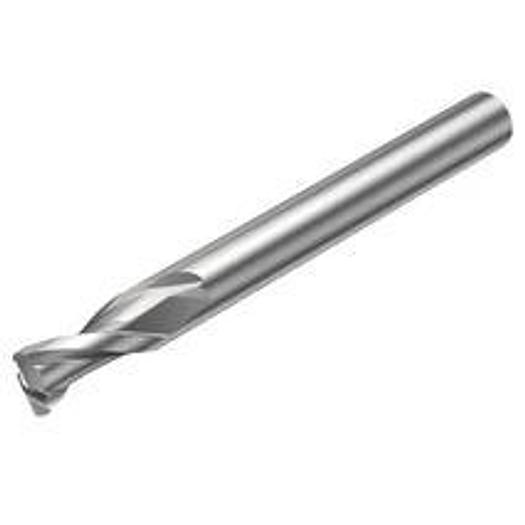

End mill square shape, with corner radius and center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for ISO N

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 5.80
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• DCONMS: 5.8 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 40000 1/min
• Corner radius (RE): 1 mm
• Immersion angle, max.(RMPX): 15 deg
• Functional diameter (DCF): 4 mm
• Functional length (LF): 100 mm
• Manufacturer item number: 2S221-0600-100-NG H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HF
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 64 mm
• Back rake angle (GAMP): 1 deg
• Cutting diameter (DC): 6 mm
• Cutting length, max. (APMX): 9 mm
• Side rake angle (GAMF): 17 deg
• Grade: H10F
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 6 mm
• Cutting length: 9 mm
• Functional length L: 100 mm
• Number of effective cutting edges on the circumference: 2
• All ISO application areas: N
