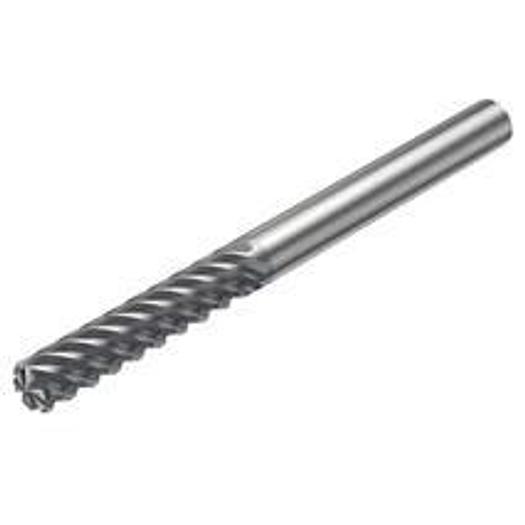

End mill square shape, with corner radius, without center cutting edge - inch version

CoroMill® Plura solid carbide end mills for finishing

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1/4
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6.35 mm
• Helix angle (FHA): 50 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 0.397 mm
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 2,381 mm
• Functional length (LF): 76.2 mm
• Manufacturer item number: RA215.24-0850AAK06L 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Useful length (LU): 9,525 mm
• Back rake angle (GAMP): 13.5 deg
• Cutting diameter (DC): 3.175 mm
• Cutting length, max. (APMX): 9,525 mm
• Side rake angle (GAMF): 10.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 3.175 mm
• Cutting length: 9,525 mm
• Functional length L: 76.2 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: P|M|K|S
