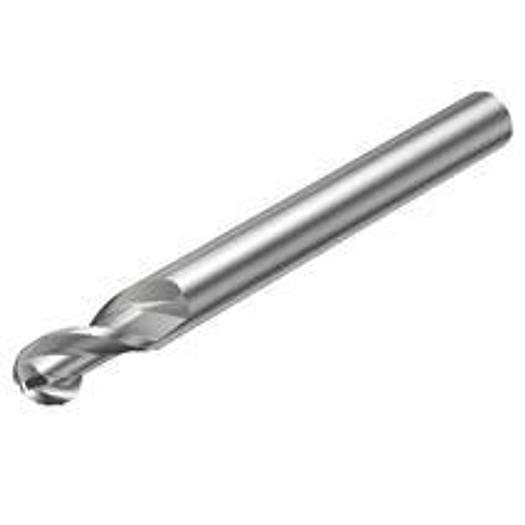

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 11.70
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• DCONMS: 11.7 mm
• Helix angle (FHA): 40 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 6 mm
• Immersion angle, max.(RMPX): 20 deg
• Functional length (LF): 125 mm
• Manufacturer item number: 2B320-1200-NG H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HF
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 80 mm
• Back rake angle (GAMP): 11 deg
• Cutting diameter (DC): 12 mm
• Cutting length, max. (APMXFFW): 17 mm
• Side rake angle (GAMF): 17 deg
• Grade: H10F
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 12 mm
• Cutting length max APMXFF: 17 mm
• Number of effective cutting edges on the circumference: 2
• Functional length L: 125 mm
• All ISO application areas: N
