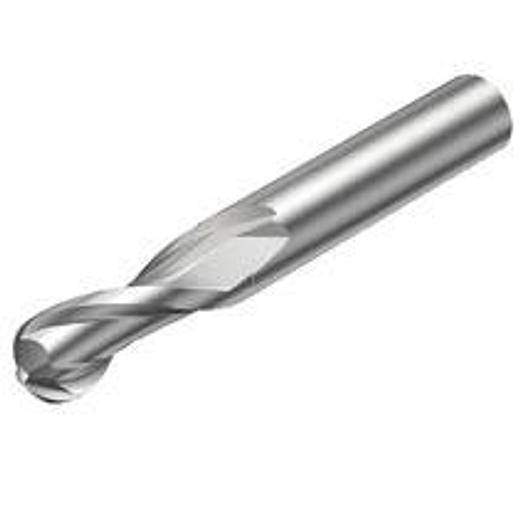

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 8
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• DCONMS: 8 mm
• Helix angle (FHA): 40 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 4 mm
• Immersion angle, max.(RMPX): 20 deg
• Functional length (LF): 63 mm
• Neck diameter (DN): 7.7 mm
• Manufacturer item number: 2B330-0800-NC H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HF
• Body diameter (BD1): 7.7 mm
• Body cone setting angle (BHTA2): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB1): 23.8 mm
• Length Body Diameter 1(LB2): 24 mm
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 2
• Usable length (LU): 23.8 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 8 mm
• Cutting length, max. (APMXFFW): 14 mm
• Side rake angle (GAMF): 17 deg
• Grade: H10F
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 8 mm
• Cutting length max APMXFF: 14 mm
• Number of effective cutting edges on the circumference: 2
• Functional length L: 63 mm
• All ISO application areas: N
