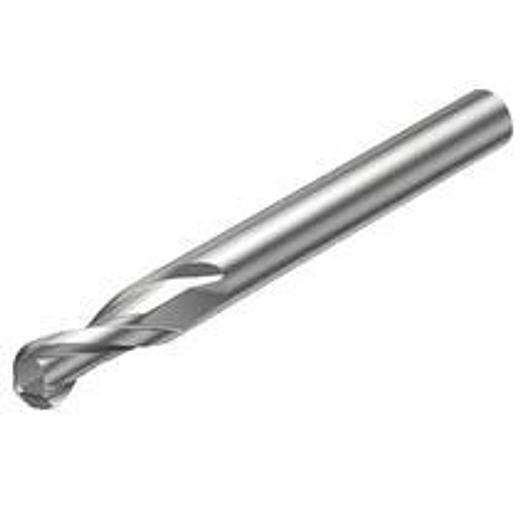

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• DCONMS: 6 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 1 mm
• Immersion angle, max.(RMPX): 20 deg
• Functional length (LF): 57 mm
• Manufacturer item number: R216.42-02030-AK60A H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HF
• Body cone setting angle (BHTA): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 6 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 2 mm
• Cutting length, max. (APMXFFW): 6 mm
• Side rake angle (GAMF): 13.5 deg
• Grade: H10F
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 2 mm
• Cutting length max APMXFF: 6 mm
• Number of effective cutting edges on the circumference: 2
• Functional length L: 57 mm
• All ISO application areas: N
