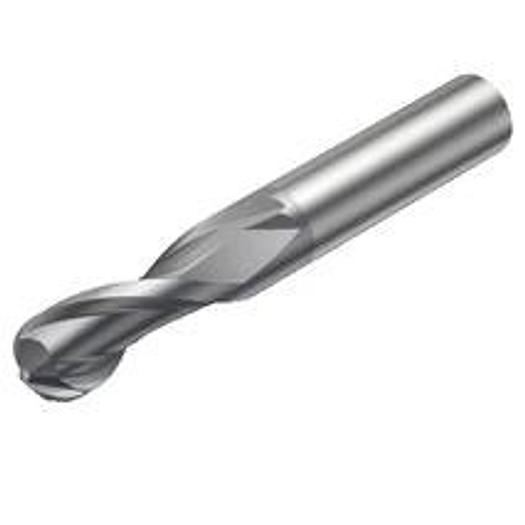

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 12
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 12 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 6 mm
• Immersion angle, max.(RMPX): 3 deg
• Functional length (LF): 83 mm
• Manufacturer item number: R216.42-12030-AC22G 1610
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 22 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 12 mm
• Cutting length, max. (APMXFFW): 22 mm
• Side rake angle (GAMF): -5.5 deg
• Grade: 1610
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 12 mm
• Cutting length max APMXFF: 22 mm
• Number of effective cutting edges on the circumference: 2
• Functional length L: 83 mm
• All ISO application areas: H
