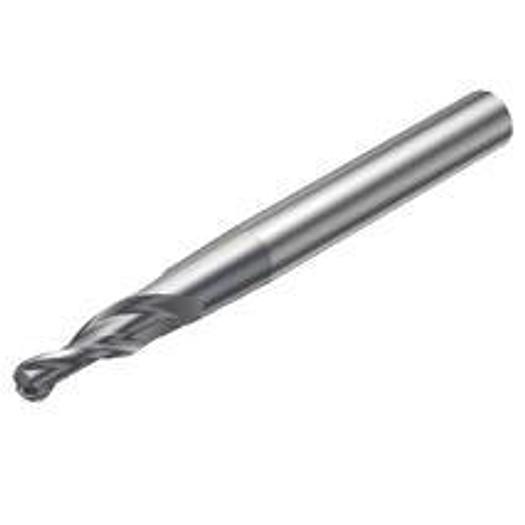

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 8
• Number of effective cutting edges, circumferential (ZEFP): 3
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 8 mm
• Helix angle (FHA): 40 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 2 mm
• Immersion angle, max.(RMPX): 15 deg
• Functional length (LF): 80 mm
• Manufacturer item number: R216.53-04040RAL40G 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body cone setting angle (BHTA): 3 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 39.6 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 40 mm
• Back rake angle (GAMP): 16 deg
• Cutting diameter (DC): 3.994518139018 mm
• Cutting length, max. (APMXFFW): 40 mm
• Side rake angle (GAMF): 2 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 3.994518139018 mm
• Cutting length max APMXFF: 40 mm
• Number of effective cutting edges on the circumference: 3
• Functional length L: 80 mm
• All ISO application areas: P|M|K|S
