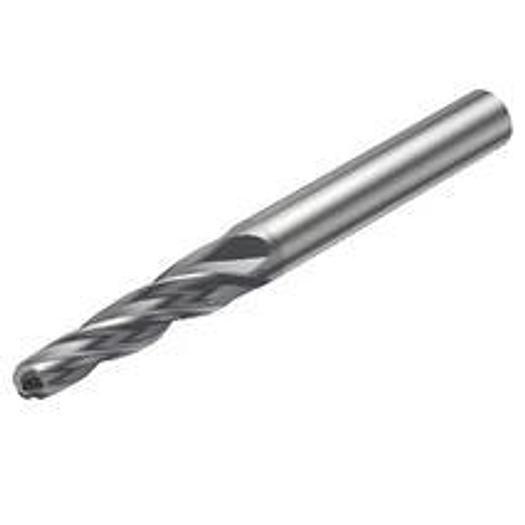

Ball End Mills - Metric Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 20
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 20 mm
• Helix angle (FHA): 40 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 8 mm
• Immersion angle, max.(RMPX): 15 deg
• Functional length (LF): 125 mm
• Manufacturer item number: R216.54-16040RAL45G 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body cone setting angle (BHTA): 3 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 45.95 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 45 mm
• Back rake angle (GAMP): 12 deg
• Cutting diameter (DC): 15.978072556073 mm
• Cutting length, max. (APMXFFW): 45 mm
• Side rake angle (GAMF): 2 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 15.978072556073 mm
• Cutting length max APMXFF: 45 mm
• Number of effective cutting edges on the circumference: 4
• Functional length L: 125 mm
• All ISO application areas: P|M|K|S
