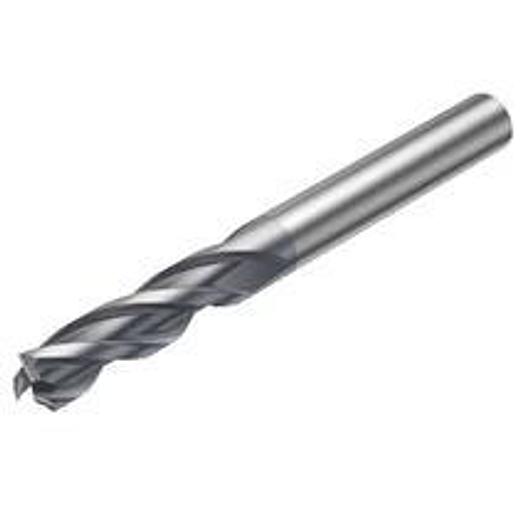

End mill square shape, without corner radius, with center cutting edge - inch version

CoroMill® Plura solid carbide end mills for large incisions

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1/2
• Number of effective cutting edges, circumferential (ZEFP): 3
• Coating Process Type: PVD
• DCONMS: 12.7 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 40100 1/min
• Corner chamfer width (CHW): 0.102 mm
• Corner chamfer angle (KCH): 45 deg
• Immersion angle, max.(RMPX): 7 deg
• Functional diameter (DCF): 12,496 mm
• Functional length (LF): 88.9 mm
• Manufacturer item number: 1P260-1270-XA 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 40.48 mm
• Back rake angle (GAMP): 13.5 deg
• Cutting diameter (DC): 12.7 mm
• Cutting length, max. (APMX): 40.48 mm
• Side rake angle (GAMF): 10.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Lower cutting diameter tolerance (DCTOLL): -0.07 mm
• Center cutting ability (CCC): 1
• Cutting diameter: 12.7 mm
• Cutting length: 40.48 mm
• Functional length L: 88.9 mm
• Number of effective cutting edges on the circumference: 3
• All ISO application areas: P|M|K|N|S
