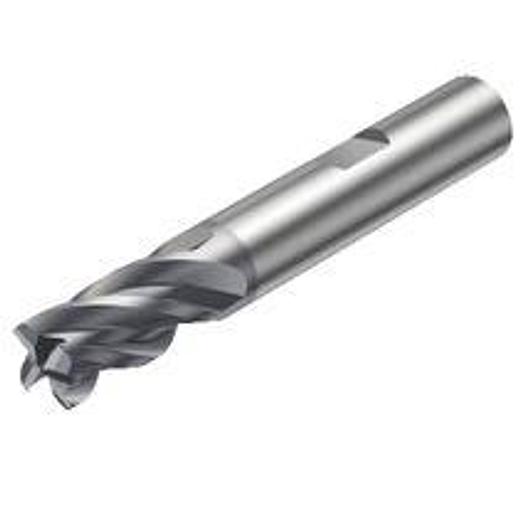

End mill square shape, without corner radius and center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for large incisions

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 10
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): DIN 6527 K
• Coating Process Type: PVD
• DCONMS: 10 mm
• Helix angle (FHA): 35 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner chamfer width (CHW): 0.2 mm
• Corner chamfer angle (KCH): 45 deg
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 9.6 mm
• Functional length (LF): 66 mm
• Manufacturer's ArtNo: 1P222-1000-XB 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 2
• Usable length (LU): 14.5 mm
• Back rake angle (GAMP): 5.5 deg
• Cutting diameter (DC): 10 mm
• Cutting length, max. (APMX): 14.5 mm
• Side rake angle (GAMF): 9 deg
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Lower cutting diameter tolerance (DCTOLL): -0.058 mm
• Center cutting ability (CCC): 1
• Cutting diameter: 10 mm
• Cutting length: 14.5 mm
• Functional length L: 66 mm
• Number of effective cutting edges on the circumference: 4

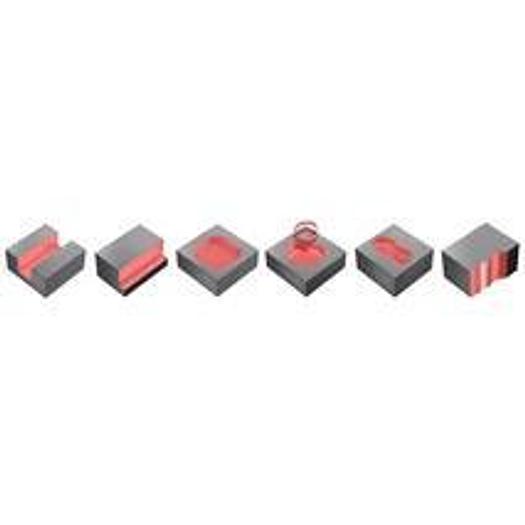

• All ISO application areas: P|M|K|N|S
