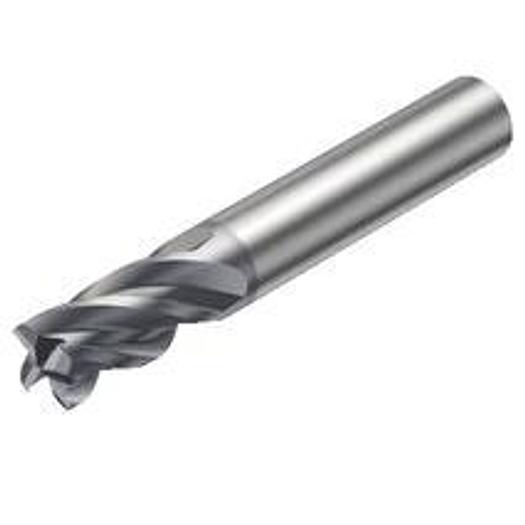

End mill square shape, without corner radius and center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for large incisions

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): DIN 6527 K
• Coating Process Type: PVD
• DCONMS: 6 mm
• Helix angle (FHA): 35 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 2 mm
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: 1P222-0200-XA 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD1): 2 mm
• Body cone setting angle (BHTA2): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB1): 6.7 mm
• Length Body Diameter 1(LB2): 10.2 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 4.5 mm
• Back rake angle (GAMP): 5.5 deg
• Cutting diameter (DC): 2 mm
• Cutting length, max. (APMX): 4.5 mm
• Side rake angle (GAMF): 9 deg
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Lower cutting diameter tolerance (DCTOLL): -0.04 mm
• Center cutting ability (CCC): 1
• Cutting diameter: 2 mm
• Cutting length: 4.5 mm
• Functional length L: 50 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: P|M|K|N|S
