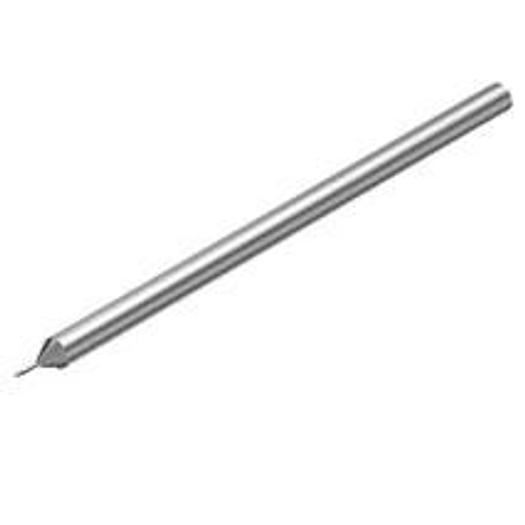

End mill square shape, without corner radius and center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for microbea

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 3
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 3 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Immersion angle, max.(RMPX): 5 deg
• Functional diameter (DCF): 0.6 mm
• Functional length (LF): 60 mm
• Neck diameter (DN): 0.56 mm
• Manufacturer's ArtNo: 2P212-0060-PC 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD1): 0.56 mm
• Body cone setting angle (BHTA2): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB1): 3 mm
• Length Body Diameter 1(LB2): 5.08 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 3 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 0.6 mm
• Cutting length, max. (APMX): 0.6 mm
• Side rake angle (GAMF): 1.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 0.6 mm
• Cutting length: 0.6 mm
• Functional length L: 60 mm
• Number of effective cutting edges on the circumference: 2
• All ISO application areas: P|K
