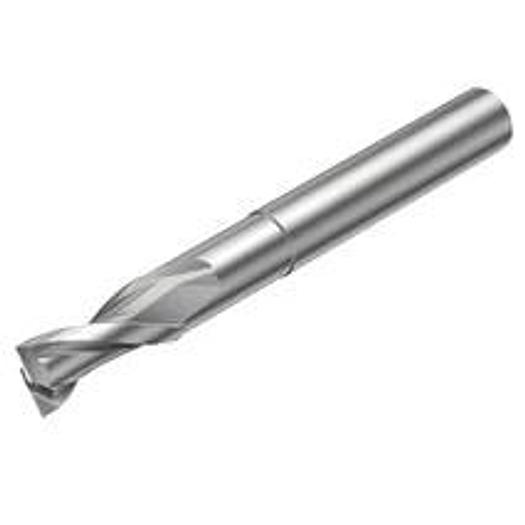

End mill square shape, without corner radius and center cutting edge - Metric version

SANDVIK COROMILL PLURA end mills

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 3
• Number of effective cutting edges, circumferential (ZEFP): 2
• Basic Classification (BSG): COROMANT
• DCONMS: 3 mm
• Helix angle (FHA): 25 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Immersion angle, max.(RMPX): 15 deg
• Functional diameter (DCF): 2 mm
• Functional length (LF): 38 mm
• Neck diameter (DN): 1.92 mm
• Manufacturer's article number: 2P120-0200-NC H10F
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HF
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 9 mm
• Back rake angle (GAMP): 13.5 deg
• Cutting diameter (DC): 2 mm
• Cutting length, max. (APMX): 3 mm
• Side rake angle (GAMF): 13.5 deg
• Grade: H10F
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 2 mm
• Cutting length: 3 mm
• Functional length L: 38 mm
• Number of effective cutting edges on the circumference: 2
• All ISO application areas: N
