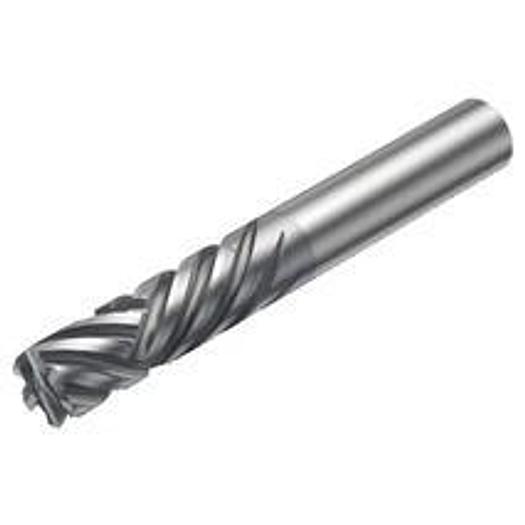

End mill square shape, without corner radius, with center cutting edge - Metric version

CoroMill® Plura solid carbide end mills for trimming

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 12
• Number of effective cutting edges, circumferential (ZEFP): 6
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 12 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 40000 1/min
• Functional diameter (DCF): 12 mm
• Functional length (LF): 100 mm
• Manufacturer item number: 2P460-1200-NA 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Length at which the spiral angle changes direction (SPTL): 12 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 38 mm
• Back rake angle (GAMP): 4 deg
• Cutting diameter (DC): 12 mm
• Cutting length, max. (APMX): 38 mm
• Side rake angle (GAMF): 12.5 deg
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting ability (CCC): 1
• Cutting diameter: 12 mm
• Cutting length: 38 mm
• Functional length L: 100 mm
• Number of effective cutting edges on the circumference: 6
• All ISO application areas: O
