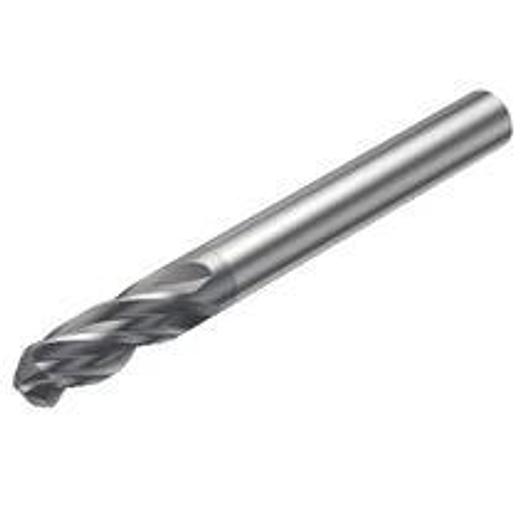

Ball End Mills - Inch Version

CoroMill® Plura solid carbide ball end mills for the Pro

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1/4
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6.35 mm
• Helix angle (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius (RE): 1,985 mm
• Immersion angle, max.(RMPX): 15 deg
• Functional length (LF): 76.2 mm
• Manufacturer item number: 1B240-0397-XA 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body cone setting angle (BHTA): 30 deg
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 17.95 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 7.94 mm
• Back rake angle (GAMP): 1.5 deg
• Cutting diameter (DC): 3.97 mm
• Cutting length, max. (APMXFFW): 7.94 mm
• Side rake angle (GAMF): 10.5 deg
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Lower cutting diameter tolerance (DCTOLL): -0.03 mm
• Cutting diameter: 3.97 mm
• Cutting length max APMXFF: 7.94 mm
• Number of effective cutting edges on the circumference: 4
• Functional length L: 76.2 mm
• All ISO application areas: P|M|K|N|S
