End mills for chamfering, concave design

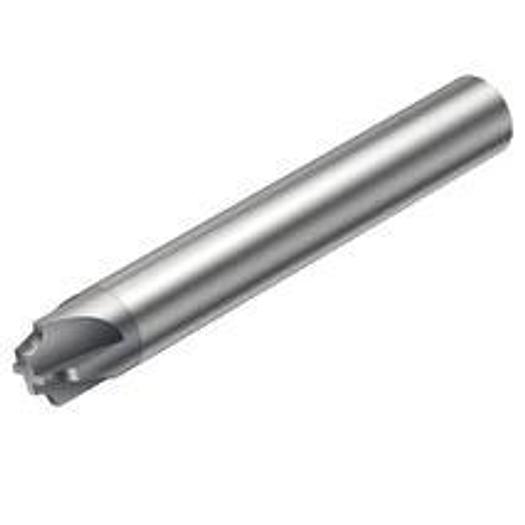

CoroMill® Plura solid carbide end mills for chamfering

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 10
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 10 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 72 mm
• Manufacturer item number: 1U000-0500-200-XA 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Profile radius 1(PRFRAD): 2 mm
• Cutting diameter (DC): 5 mm
• Cutting diameter, max. (DCX): 10 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 5 mm
• Mounting diameter: 10 mm
• Number of effective cutting edges on the circumference: 4
• Functional length L: 72 mm
• All ISO application areas: P|M|K|N|S|H
