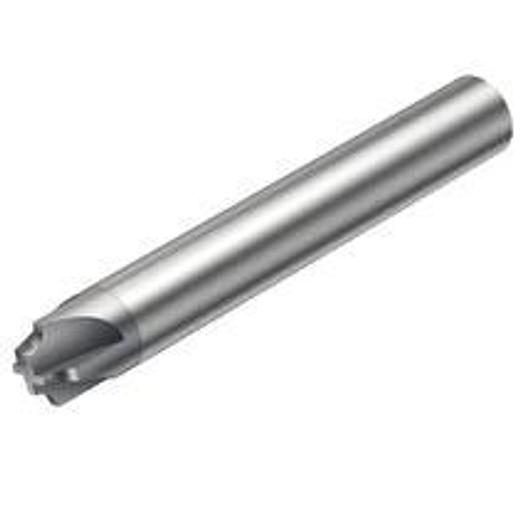

End mills for chamfering, concave design

CoroMill® Plura solid carbide end mills for chamfering

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
• Number of effective cutting edges, circumferential (ZEFP): 3
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 57 mm
• Manufacturer item number: 1U000-0400-075-XA 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Profile radius 1 (PRFRAD): 0.75 mm
• Cutting diameter (DC): 4 mm
• Cutting diameter, max. (DCX): 6 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 4 mm
• Mounting diameter: 6 mm
• Number of effective cutting edges on the circumference: 3
• Functional length L: 57 mm
• All ISO application areas: P|M|K|N|S|H
