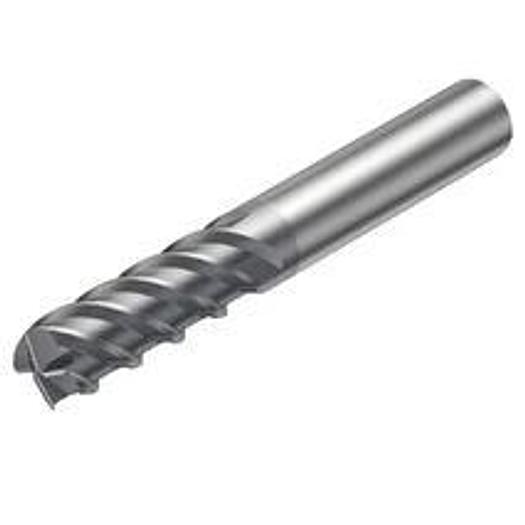

high-feed end mills

CoroMill® Plura solid carbide end mills for high-precision

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 10
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): DIN 6537 L
• Coating Process Type: PVD
• DCONMS: 10 mm
• Helix angle (FHA): 50 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner Radius Equivalent (REEQ): 1.99 mm
• Corner radius (RE1): 1.5 mm
• Corner radius (RE2): 5 mm
• Setting angle (KAPR): 32.69 deg
• Immersion angle, max.(RMPX): 5 deg
• Functional length (LF): 72 mm
• Manufacturer item number: R215.H4-10050DAC07P 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 26 mm
• Life Cycle Status (LCS): 20
• Maximum regrinding operations (NORGMX): 3
• Usable length (LU): 26 mm
• Back rake angle (GAMP): 6 deg
• Cutting diameter (DC): 10 mm
• Cutting length, max. (APMX1): 26 mm
• Cutting length, max. (APMX2): 0.7 mm
• Side rake angle (GAMF): -18 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Cutting diameter: 10 mm
• Functional length L: 72 mm
• Number of effective cutting edges on the circumference: 4
• All ISO application areas: P|M|K|S
