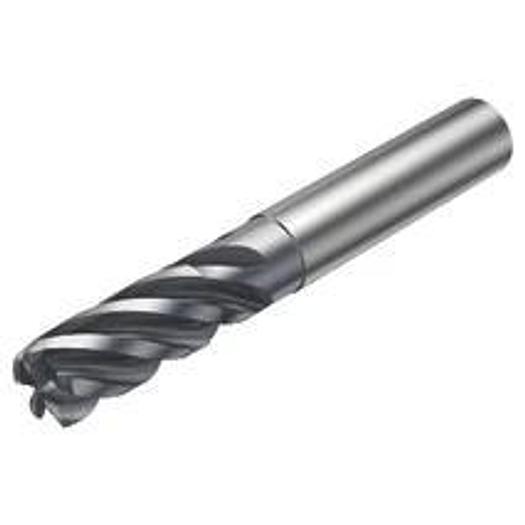

End mill square shape, with corner radius, without center cutting edge - Metric version
End mill square shape, with corner radius, without center cutting edge - Metric version
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description
CoroMill® Plura solid carbide end mills for heavy-duty
- Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 10
- Number of effective cutting edges, circumferential (ZEFP): 5
- Basic Classification (BSG): COROMANT
- Coating Process Type: PVD
- DCONMS: 10 mm
- Helix angle (FHA): 38 deg
- Speed, max. (-81, -82: Maximum speed)(RPMX): 63700 1/min
- Corner radius (RE): 0.5 mm
- Immersion angle, max.(RMPX): 7 deg
- Functional diameter (DCF): 9 mm
- Functional length (LF): 72 mm
- Neck diameter (DN): 9.5 mm
- Manufacturer's ArtNo: 2F342-1000-050-PC 1730
- Manufacturer: SANDVIK COROMANT
- IC Code: 10050
- ISO Cutting Tool Material: HC
- Body diameter (BD1): 9.5 mm
- Body cone setting angle (BHTA2): 30 deg
- Coolant inlet (CNSC): 0: without coolant
- Length Body Diameter 1(LB1): 30 mm
- Length Body Diameter 1(LB2): 30.43 mm
- Life Cycle Status (LCS): 20
- Maximum regrinding operations (NORGMX): 2
- Usable length (LU): 30 mm
- Back rake angle (GAMP): 10.5 deg
- Cutting diameter (DC): 10 mm
- Cutting length, max. (APMX): 22 mm
- Side rake angle (GAMF): 10.5 deg
- Grade: 1730
- Substrate Type: WC
- Tolerance shaft diameter (TCDCON): h6
- Cutting diameter: 10 mm
- Cutting length: 22 mm
- Functional length L: 72 mm
- Number of effective cutting edges on the circumference: 5
- All ISO application areas: P|K
Specifications
Manufacturer | SANDVIK COROMANT |
Model | 2F3421000050PC1730 |
Year | 2024 |
Condition | New |
Serial Number | 520 2F342-1000-050-PC 1730 |
Stock Number | . |
