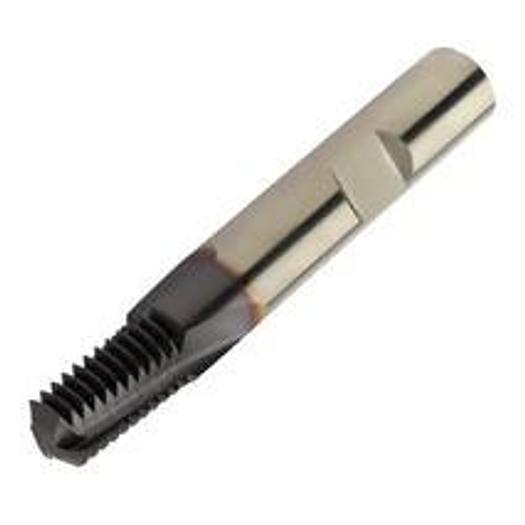

CoroMill Plura thread cutting cutter with 45° chamfer
CoroMill Plura thread cutting cutter with 45° chamfer
$840 (USD)
Location:Germany
Available quantity:99
orCall +1 (305) 951 -7825
Description
CoroMill® Plura solid carbide end mills for thread milling
- Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 16
- Number of effective cutting edges, circumferential (ZEFP): 4
- Coating Process Type: PVD
- DCONMS: 16 mm
- Helix angle (FHA): 10 deg
- Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
- Setting angle (KAPR): 45 deg
- Functional length (LF1): 80.01 mm
- Functional length (LF2): 82 mm
- Number of threads per inch (TPI): 14
- Thread type (THFT): NPT60
- Thread cutting part, application (TTP): INT
- Neck diameter (DN): 15.9 mm
- Manufacturer item number: R217.54-159140AC20N 1630
- Manufacturer: SANDVIK COROMANT
- IC Code: 10050
- ISO Cutting Tool Material: HC
- Coolant inlet (CNSC): 0: without coolant
- Life Cycle Status (LCS): 20
- Effective length (LU): 20.46 mm
- Cutting diameter (DC1): 15.9 mm
- Cutting diameter (DC2): 7.95 mm
- Cutting diameter, max. (DCX): 15 mm
- Cutting length, max. (APMX): 20.46 mm
- Grade: 1630
- Substrate Type: WC
- Tolerance shaft diameter (TCDCON): h6
- Usable length: 20.46 mm
- Cutting length: 20.46 mm
- All ISO application areas: P|M|K|S
Specifications
Manufacturer | SANDVIK COROMANT |
Model | R217.54-159140AC20N1630 |
Year | 2024 |
Condition | New |
Serial Number | 520 R217.54-159140AC20N 1630 |
Stock Number | . |
