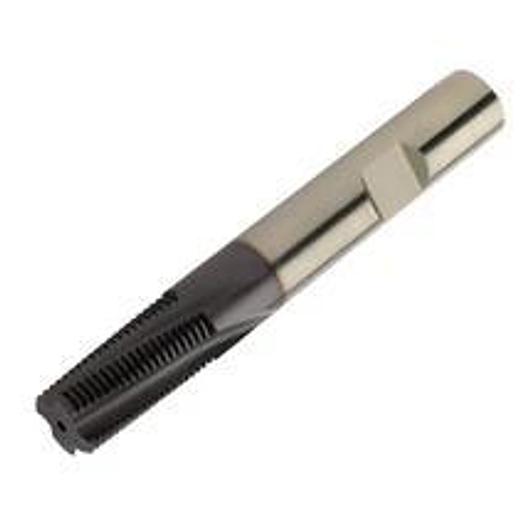

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill® Plura solid carbide end mills for thread milling

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 20
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 20 mm
• Helix angle (FHA): 10 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 104 mm
• Number of threads per inch (TPI): 14
• Thread type (THFT): WH55
• Thread cutting part, application (TTP): EXT_INT
• Size of thread diameter (FTDZ): G5/8 3/4 7/8
• Manufacturer item number: R217.95-200140BC35N 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 36.2 mm
• Cutting diameter (DC): 20 mm
• Cutting length, max. (APMX): 36.2 mm
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 36.2 mm
• Cutting length: 36.2 mm
• Cutting diameter: 20 mm
• All ISO application areas: P|M|K|N|S|H
