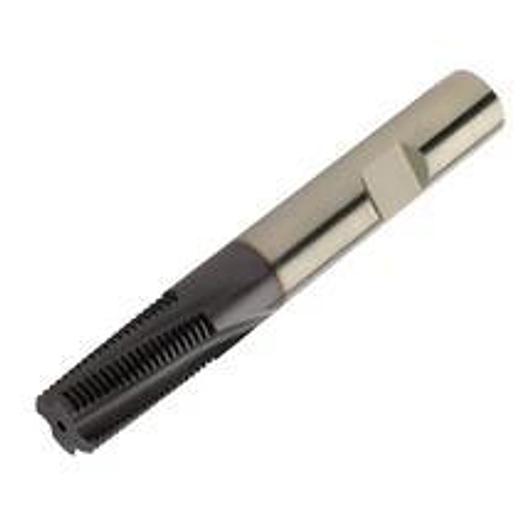

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill Plura thread cutting cutter with 45° chamfer

$845 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

SANDVIK thread cutting milling cutters, CoroMill

  • Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 16
  • Number of effective cutting edges, circumferential (ZEFP): 5
  • Basic Classification (BSG): COROMANT
  • Coating Process Type: PVD
  • DCONMS: 16 mm
  • Helix angle (FHA): 10 deg
  • Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
  • Functional length (LF): 92 mm

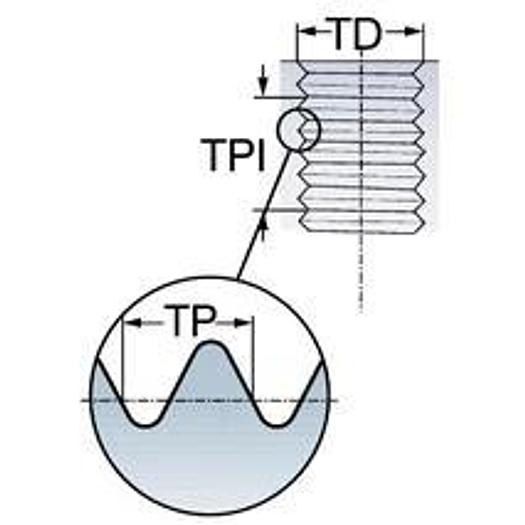

  • Number of threads per inch (TPI): 14
  • Thread type (THFT): WH55
  • Thread cutting part, application (TTP): EXT_INT
  • Size of thread diameter (FTDZ): G1/2 5/8
  • Manufacturer item number: R217.95-160140BC30N 1630
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HC
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Usable length (LU): 30.8 mm
  • Cutting diameter (DC): 16 mm
  • Cutting length, max. (APMX): 30.8 mm
  • Grade: 1630
  • Substrate Type: WC
  • Tolerance shaft diameter (TCDCON): h6
  • Usable length: 30.8 mm
  • Cutting length: 30.8 mm
  • Cutting diameter: 16 mm
  • All ISO application areas: P|M|K|N|S|H



Specifications

ManufacturerSANDVIK COROMANT
ModelR217.95-160140BC30N1630
Year2024
ConditionNew
Serial Number520 R217.95-160140BC30N 1630
Stock Number.
