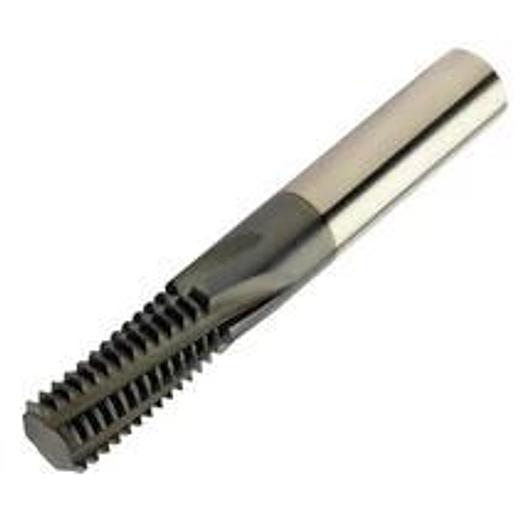

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill® Plura solid carbide end mills for thread milling

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 6.00
• Number of effective cutting edges, circumferential (ZEFP): 5
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6 mm
• Helix angle (FHA): 10 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 57 mm

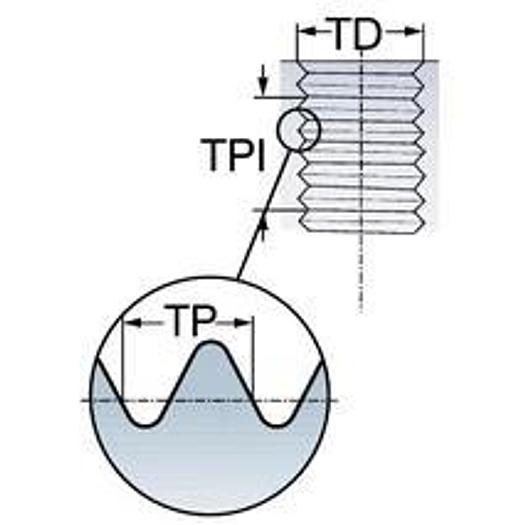

• Thread type (THFT): M60
• Thread cutting part, application (TTP): INT
• Thread pitch (TP): 1.25 mm
• Thread diameter size (FTDZ): M8X1.25
• Manufacturer item number: R217.15-060125AC12M 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 70200
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Usable length (LU): 12.5 mm
• Cutting diameter (DC): 6 mm
• Cutting length, max. (APMX): 12.5 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 12.5 mm
• Cutting length: 12.5 mm
• Cutting diameter: 6 mm
• All ISO application areas: P|H
