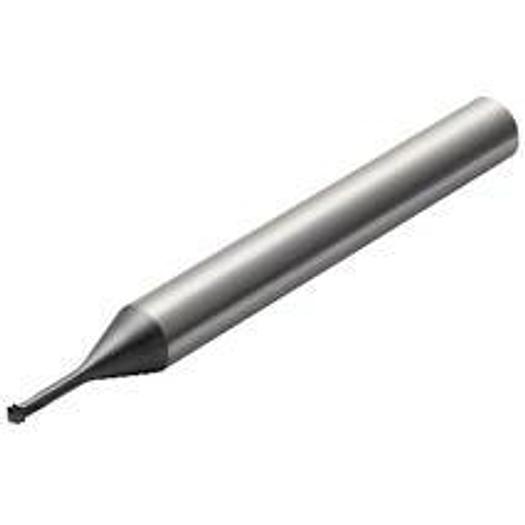

CoroMill Plura thread cutting cutter with 45° chamfer

CoroMill Plura thread cutting cutter with 45° chamfer

$260 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

CoroMill® Plura solid carbide end mills for thread milling

  • Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 6
  • Number of effective cutting edges, circumferential (ZEFP): 3
  • Basic Classification (BSG): COROMANT
  • Coating Process Type: PVD
  • DCONMS: 6 mm
  • Helix angle (FHA): 15 deg
  • Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
  • Setting angle (KAPR): 30 deg
  • Functional length (LF1): 56.47 mm
  • Functional length (LF2): 57 mm
  • Number of threads per inch (TPI): 24
  • Thread type (THFT): UN60
  • Thread cutting part, application (TTP): INT
  • Thread diameter size (FTDZ): UNC #10-24
  • Neck diameter (DN): 2.1 mm
  • Manufacturer item number: R217.33-035240AC14P 1620
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 70200
  • ISO Cutting Tool Material: HC
  • Body diameter (BD): 2.1 mm
  • Coolant inlet (CNSC): 0: without coolant
  • Life Cycle Status (LCS): 20
  • Effective length (LU): 16.1 mm
  • Cutting diameter (DC1): 3.55 mm
  • Cutting diameter (DC2): 1,775 mm
  • Cutting length, max. (APMX): 2,646 mm
  • Grade: 1620
  • Substrate Type: WC
  • Tolerance shaft diameter (TCDCON): h6
  • Usable length: 16.1 mm
  • Body diameter B: 2.1 mm
  • Cutting length: 2,646 mm
  • All ISO application areas: P|M|K|N|S|O



Specifications

ManufacturerSANDVIK COROMANT
ModelR217.33-035240AC14P1620
Year2024
ConditionNew
Serial Number520 R217.33-035240AC14P 1620
Stock Number.
