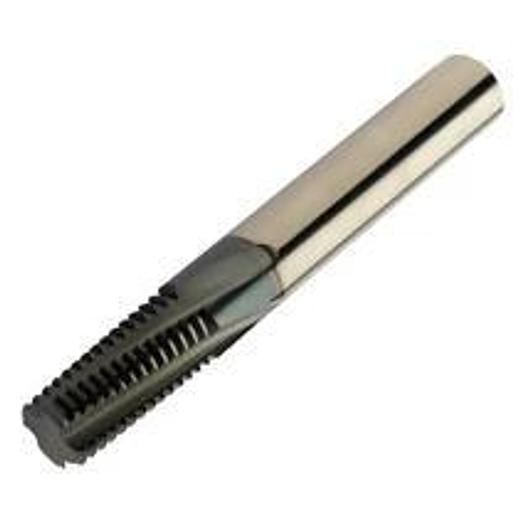

CoroMill Plura thread cutting cutter with 45° chamfer

SANDVIK COROMILL PLURA thread milling cutters

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -metric: 6.00
• Number of effective cutting edges, circumferential (ZEFP): 4
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 6 mm
• Helix angle (FHA): 10 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 65 mm
• Thread type (THFT): M60
• Thread cutting part, application (TTP): INT

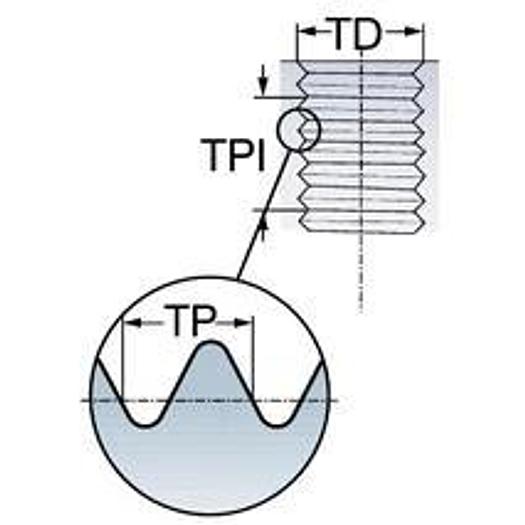

• Thread pitch (TP): 1.25 mm
• Thread diameter size (FTDZ): M8X1.25
• Manufacturer item number: R217.14C060125AK17N 1630
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant pressure (CP): 20 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Usable length (LU): 17.5 mm
• Cutting diameter (DC): 6 mm
• Cutting length, max. (APMX): 17.5 mm
• Grade: 1630
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 17.5 mm
• Cutting length: 17.5 mm
• Cutting diameter: 6 mm
• All ISO application areas: P|M|K|S
