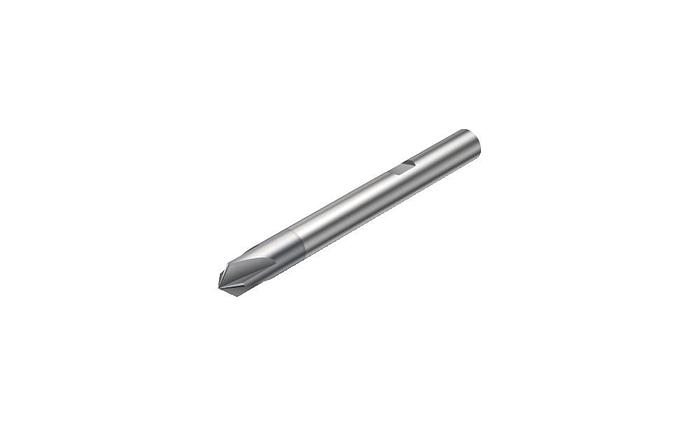

CoroMill Plura VHM shaft milling cutter for chamfering, 45°

CoroMill® Plura solid carbide shaft milling cutter for the spiler

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 12
• Number of effective cutting edges, circumference (ZEFP): 6
• Basic classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 12mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Function length(LF): 81.5 mm
• Art.Nr: 1C050-0300-045-XB 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life cycle status (LCS): 20
• Cutting edge diameter (DC): 3 mm
• Cutting edge diameter, max.( DCX): 12 mm
• Cutting edge length, max.( APMX): 4.5 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Holder diameter: 12 mm
• Functional length L: 81.5 mm
• Cutting edge length: 4.5 mm
• Number of effective cuts circumference: 6
• Sort degree: 1620
• All ISO areas of application: P|M|K|N|S|H
