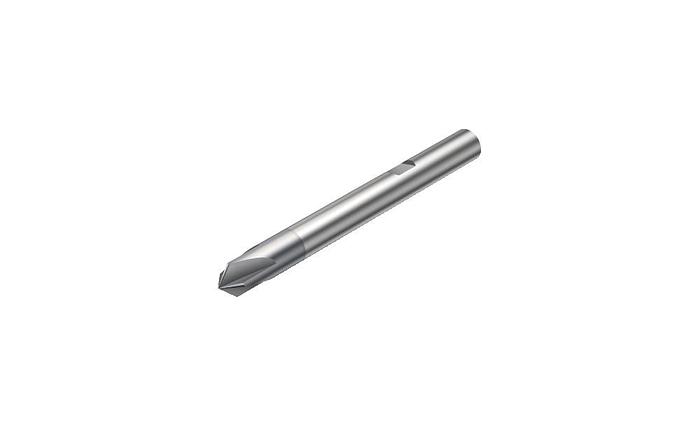

CoroMill Plura VHM shaft milling cutter for chamfering, 45°

SANDVIK PLURA Full Carbide Cutter

• Adapter interface machine direction(ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 8
• Number of effective cutting edges, circumference (ZEFP): 5
• Basic classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 8 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 79 mm
• Art.Nr: 1C050-0200-045-XA 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life cycle status (LCS): 20
• Cutting edge diameter (DC): 2 mm
• Cutting edge diameter, max.( DCX): 8 mm
• Cutting edge length, max.( APMX): 3 mm
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Mount diameter: 8 mm
• Functional length L: 79 mm
• Cutting edge length: 3 mm
• Number of effective cutting edges by circumference: 5
• Sort degree: 1620
• All ISO areas of application: P|M|K|N|S|H
