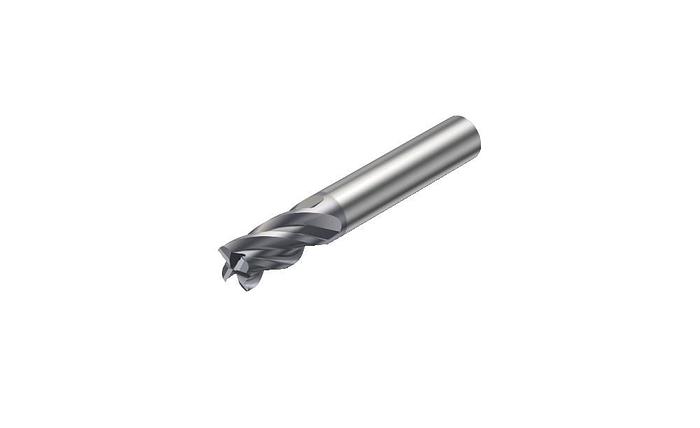

Shank milling cutters for multi-task machining

SANDVIK COROMILL PLURA shaft milling cutter for rotary milling machining

• Adapter interface machine direction(ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 12
• Number of effective cuts, circumfercumntal (ZEFP): 4
• Basic classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 12mm
• Angle of spin (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius(RE): 1 mm
• Scompersion angle, max.( RMPX): 5 deg
• Function diameter (DCF): 10 mm
• Functional length(LF): 73 mm
• HerstArtNr: R216. T4-12030CAS16N 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life cycle status (LCS): 20
• Maximum re-sand operations (NORGMX): 3
• Useful length(LU): 16 mm
• Flat cutting width (BS): 5 mm
• Back-timing angle (GAMP): 13.5 deg
• Cutting edge diameter (DC): 12 mm
• Cutting edge length, max.( APMX): 16 mm
• Side span angle (GAMF): 10.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting capability (CCC): 1
• Cutting edge diameter: 12 mm
• Cutting edge length: 16 mm
• Functional length L: 73 mm
• Number of effective cutting edges on the circumference side: 4
• All ISO application areas: P|M|K|S
