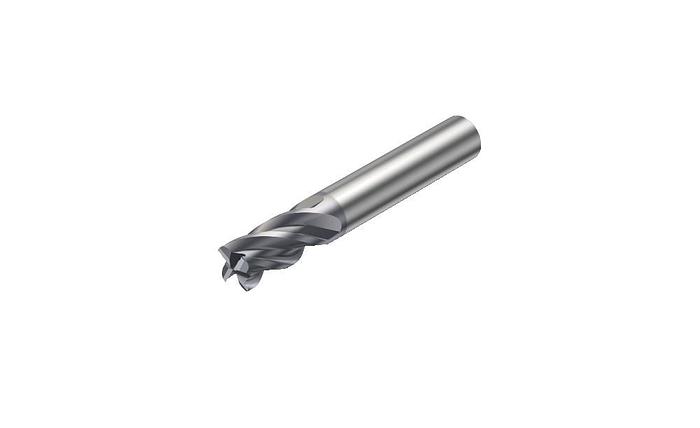

Shank milling cutters for multi-task machining

CoroMill® Plura shank milling cutter for rotary milling

• Adapter interface machine direction (ADINTMS): Cylindrical shank (DIN6535-HA) -metric: 10
• Number of effective cuts, circumfercumntal (ZEFP): 4
• Basic classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 10mm
• Angle of spin (FHA): 30 deg
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Corner radius(RE): 1 mm
• Scompersion angle, max.( RMPX): 5 deg
• Functional diameter (DCF): 8 mm
• Function length(LF): 66 mm
• HerstArtNr: R216. T4-10030CAS14N 1620
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life cycle status (LCS): 20
• Maximum re-sand operations (NORGMX): 3
• Useful length (LU): 14 mm
• Flat cutting width (BS): 4 mm
• Back-timing angle (GAMP): 13.5 deg
• Cutting edge diameter (DC): 10 mm
• Cutting edge length, max.( APMX): 14mm
• Side span angle (GAMF): 10.5 deg
• Grade: 1620
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Center cutting capability (CCC): 1
• Cutting edge diameter: 10 mm
• Cutting edge length: 14 mm
• Functional length L: 66 mm
• Number of effective cutting edges on the circumference side: 4
• All ISO application areas: P|M|K|S
