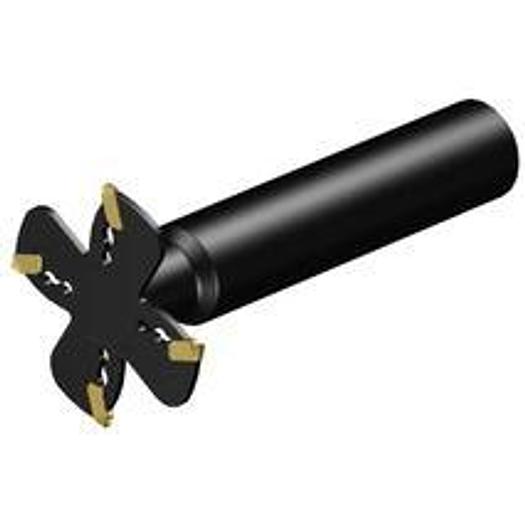

CoroMill QD slotting and parting cutters - inch version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction(ADINTMS): Cylindrical shank without clamping features -inch: 1
• Number of cutting parts (CICT): 4
• Number of effective cutting edges, circumferential (ZEFP): 4
• DCONMS: 25.4 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5600 1/min
• Functional length (LF): 130 mm
• Manufacturer's ArtNo: AQD-F-063O25-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 19 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 22.3 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 23.9 mm
• Cutting diameter (DC): 63 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 21 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size F (QD-NF-0239-020E-PM)
• Cutting diameter: 63 mm
• Body diameter B: 19 mm
• Length Body Diameter 1 L: 22.3 mm
• Number of effective cutting edges on the circumference: 4
