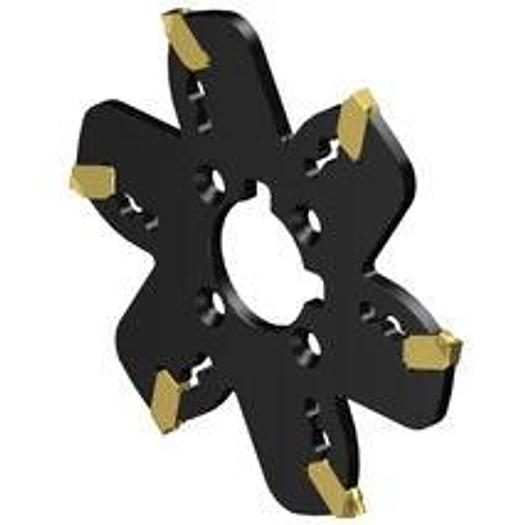

CoroMill QD slotting and parting cutters - inch version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction(ADINTMS): Arbor -Coromant disc mill (4 bolts) -inch: Y25
• Number of drives (DRVCT): 2
• Number of cutting parts (CICT): 6
• Number of effective cutting edges, circumferential (ZEFP): 6
• DCONMS: 25.4 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 4400 1/min
• Functional length (LF): 3.65 mm
• Manufacturer's ArtNo: AQD-HC102Y25-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 70 bar
• Coolant inlet (CNSC): 4: axial concentric entry on circle
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 36 mm
• Cutting diameter (DC): 101.6 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 25.8 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size H (QD-NH-0400-025E-PM)
• Mounting diameter: 25.4 mm
• Cutting diameter: 101.6 mm
• Number of effective cutting edges on the circumference: 6
