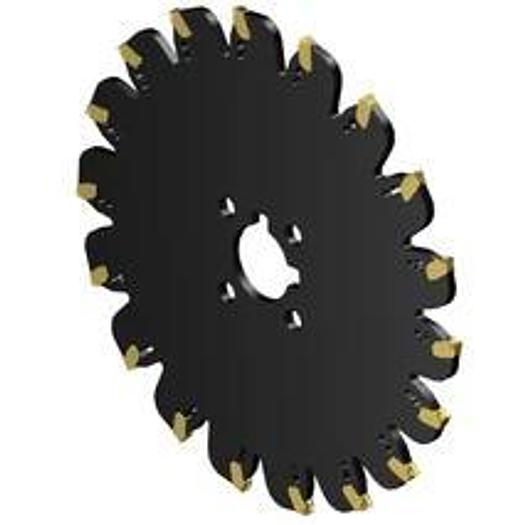

CoroMill QD slotting and parting cutters - inch version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction (ADINTMS): Arbor -Coromant disc mill (4 bolts) -inch: Y38
• Number of drives (DRVCT): 2
• Number of cutting parts (CICT): 18
• Number of effective cutting edges, circumferential (ZEFP): 18
• DCONMS: 38.1 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 2400 1/min
• Functional length (LF): 5,825 mm
• Manufacturer's ArtNo: AQD-K-254Y38-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 63 mm
• Cutting diameter (DC): 254 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 87 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size K (QD-NK-0635-035E-PM)
• Mounting diameter: 38.1 mm
• Cutting diameter: 254 mm
• Number of effective cutting edges on the circumference: 18
