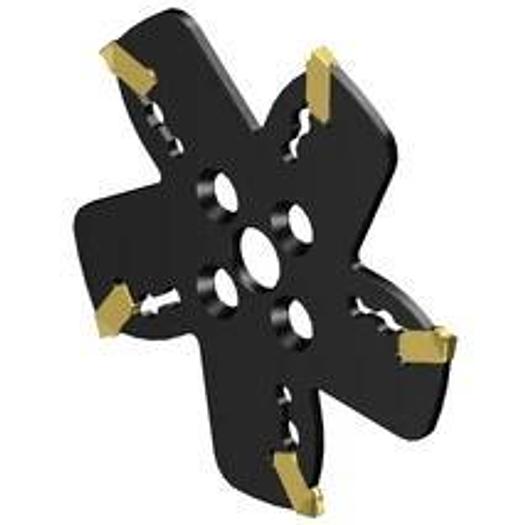

CoroMill QD slotting and parting cutters - Metric version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction (ADINTMS): Arbor -Coromant disc mill (4 bolts) -metric: X10
• Number of cutting parts (CICT): 5
• Number of effective cutting edges, circumferential (ZEFP): 5
• DCONMS: 10 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 2.65 mm
• Manufacturer's ArtNo: QD-FC080X10-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant pressure (CP): 50 bar
• Coolant inlet (CNSC): 4: axial concentric entry on circle
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 22 mm
• Cutting diameter (DC): 80 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 24 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size F (QD-NF-0250-020E-PM)
• Mounting diameter: 10 mm
• Cutting diameter: 80 mm
• Number of effective cutting edges on the circumference: 5
