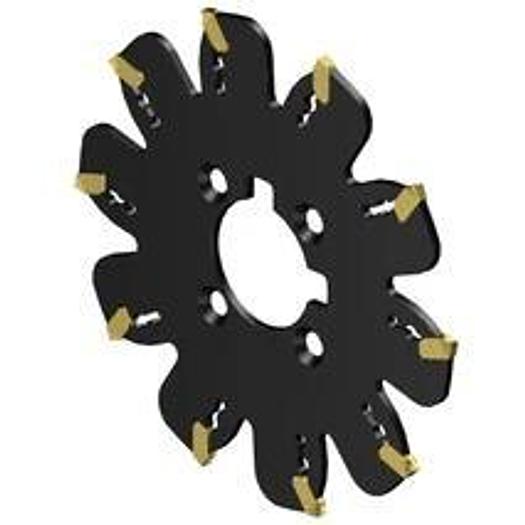

CoroMill QD slotting and parting cutters - Metric version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction (ADINTMS): Arbor -Coromant disc mill (4 bolts) -metric: X32
• Number of drives (DRVCT): 2
• Number of cutting parts (CICT): 10
• Number of effective cutting edges, circumferential (ZEFP): 10
• DCONMS: 32 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 4900 1/min
• Functional length (LF): 2.7 mm
• Manufacturer's article number: QD-GC125X32-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• Coolant pressure (CP): 70 bar
• Coolant inlet (CNSC): 4: axial concentric entry on circle
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 45 mm
• Cutting diameter (DC): 125 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 31 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size G (QD-NG-0300-020E-PM)
• Mounting diameter: 32 mm
• Cutting diameter: 125 mm
• Number of effective cutting edges on the circumference: 10
