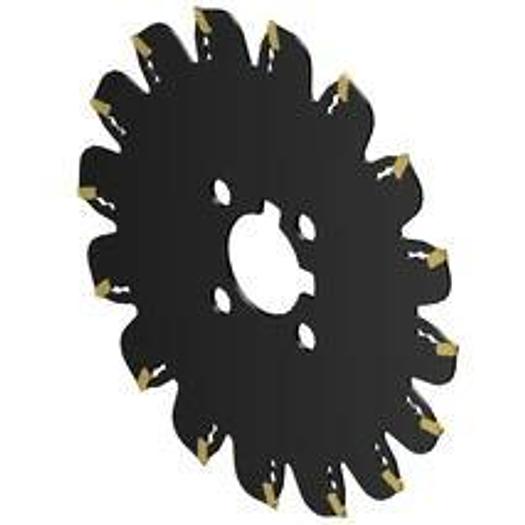

CoroMill QD slotting and parting cutters - Metric version

CoroMill® QD slotting and parting cutters for indexable inserts

• Adapter interface machine direction (ADINTMS): Arbor -Coromant disc mill (4 bolts) -metric: X40
• Number of drives (DRVCT): 2
• Number of cutting parts (CICT): 16
• Number of effective cutting edges, circumferential (ZEFP): 16
• DCONMS: 40 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 2700 1/min
• Functional length (LF): 2.65 mm
• Manufacturer's ArtNo: QD-E-200X40-M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Bolt circle diameter (DBC): 63 mm
• Cutting diameter (DC): 200 mm
• Cutting direction (HAND): R
• Cutting depth, max. (CDX): 60 mm
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill QD -size E (QD-NE-0200-020E-PM)
• Mounting diameter: 40 mm
• Cutting diameter: 200 mm
• Number of effective cutting edges on the circumference: 16
