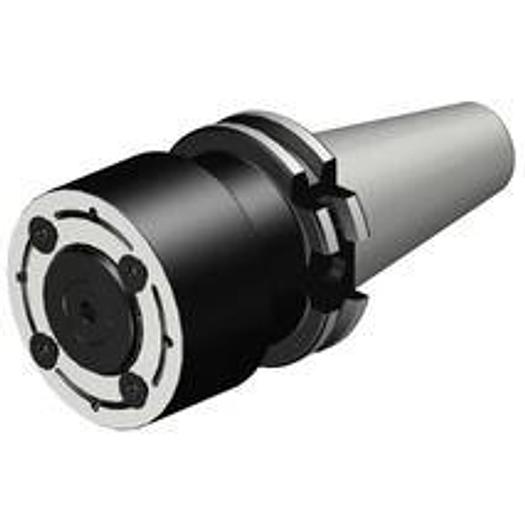

CoroMill QD milling cutter holders

ISO 7388-1 adapter on milling arbor with round drivers

• Adapter interface machine direction (ADINTMS): ISO7388.1/DIN69871 -AD/B central/flange: ISO40
• Tightening bolt thread size (CRKS): M16
• Balanced version (BBD): 1
• DCONWS: 32 mm
• DFC: 44.45 mm
• Functional length (LF): 70 mm
• Manufacturer's ArtNo: I40-X32-063-070
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 63 mm
• Body diameter (BD2): 63.5 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 50.5 mm
• Length Body Diameter 1(LB2): 70 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X32
• Standard document (STDLET): AD/AF
• Standard Number (STDNO): ISO7388-1
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X32
• Adapter interface machine direction ADINTM: ISO7388.1/DIN69871 -AD/B central/flange: ISO40
• Functional length L: 70 mm
