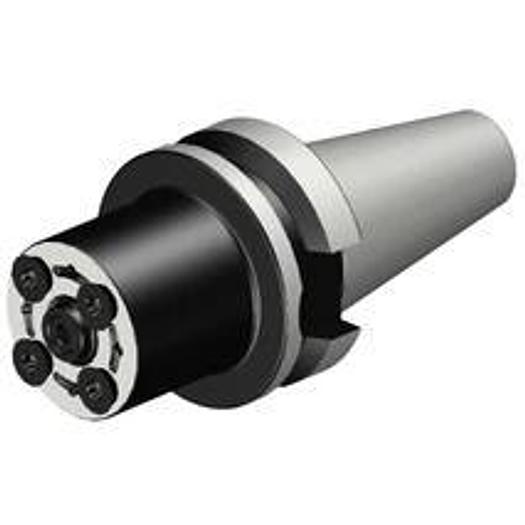

CoroMill QD milling cutter holders

MAS-BT adapter on milling arbor with round drivers

• Adapter interface machine direction (ADINTMS): MAS-BT403 -AD central coolant - BT30
• Tightening bolt thread size (CRKS): M12
• Balanced version (BBD): 1
• DCONWS: 10 mm
• DFC: 31.75 mm
• Functional length (LF): 50 mm
• Manufacturer's ArtNo: B30-X10-032-050
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 32 mm
• Body diameter (BD2): 46 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 27 mm
• Length Body Diameter 1(LB2): 50 mm
• Life Cycle Status (LCS): 20

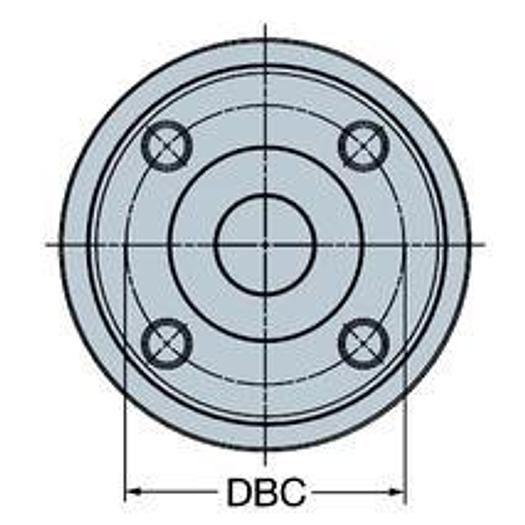

• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X10
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X10
• Adapter interface machine direction ADINTM: MAS-BT403 -AD central coolant - BT30
• Functional length L: 50 mm
