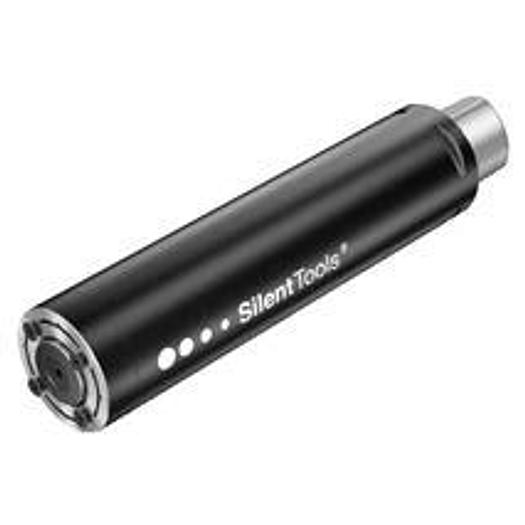

CoroMill QD milling cutter holders

Coromant Capto® for vibration-damped adapters with QD milling

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C8
• DCONMS: 80 mm
• DCONWS: 40 mm
• DFC: 55 mm
• Torque (TQ): 70 Nm
• Functional length (LF): 320 mm
• Manufacturer's ArtNo: C8-X40D-080-320
• Manufacturer: SANDVIK COROMANT
• IC Code: 10100
• Body diameter (BD): 80 mm
• Coolant pressure (CP): 70 bar
• Coolant outlet (CXSC): 3: axial inclined exit
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 320 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -Coromant disc mill (4 bolts) -metric: X40
• Standard number(STDNO): ISO26623-1
• Vibration damping (DPC): 1
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C8
• Mounting diameter: 80 mm
• Functional length L: 320 mm
• Mounting diameter DCONWS: 40 mm
• Axial runout setting ADINTW: Arbor -Coromant disc mill (4 bolts) -metric: X40
