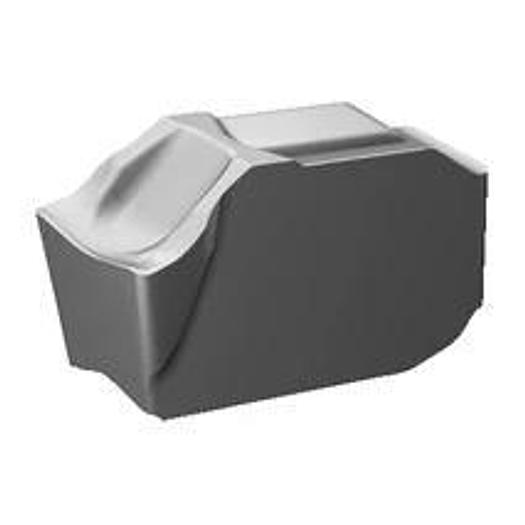

CoroMill QD indexable inserts

CoroMill® QD indexable insert for grooving

• Application Area: TP
• Coating Process Type: PVD
• Corner radius, left (REL): 0.3 mm
• Corner radius, right (RER): 0.3 mm
• fz max: 0.14000000000000001 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.10000000000000001 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NJ-0476-030E-SM 1130
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.055 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size J
• Cutting direction (HAND): N
• Grade: 1130
• Chip breaker, manufacturer designation (CBMD): SM
• Grooving width, nominal dimension (CW): 4.76 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower cutting width tolerance (CWTOLL): 0.005 mm
• vc max: 270~45 m/min
• vc min: 255~40 m/min
• vc rec: 260~40~45 m/min
• Material classification level 1 (TMC1): H~M~S
• Grooving width nominal dimension C: 4.76 mm
• Corner radius right RE: 0.3 °
• Grade: 1130
• All ISO application areas: P
