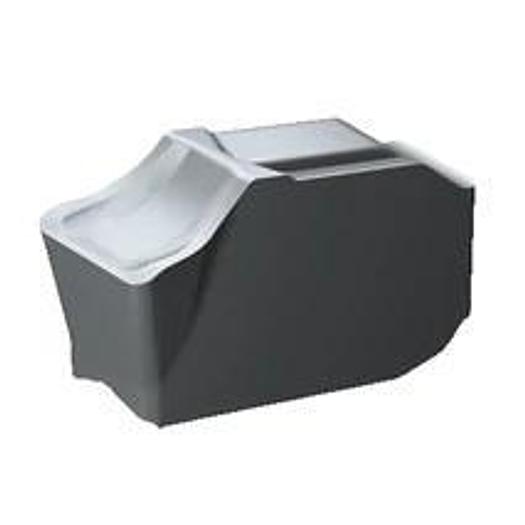

CoroMill QD indexable inserts

CoroMill QD indexable inserts

$45 (USD)

Location:Germany

Available quantity:99

orCall +1 (305) 951 -7825

Description

CoroMill® QD indexable insert for grooving

  • Application Area: TP
  • Coating Process Type: PVD
  • Corner radius, left (REL): 0.35 mm
  • Corner radius, right (RER): 0.35 mm
  • fz max: 0.16 mm
  • fz min: 5.0000000000000003E-2 mm
  • fz rec: 0.13 mm
  • Main clearance angle (AN): 7 deg
  • Manufacturer item number: QD-NG-0318-035M-PH 1130
  • Manufacturer: SANDVIK COROMANT
  • IC Code: 18000
  • ISO Cutting Tool Material: HC
  • Life Cycle Status (LCS): 20
  • Upper cutting width tolerance (CWTOLU): 0.105 mm
  • Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size G
  • Cutting direction (HAND): N
  • Grade: 1130
  • Chip breaker, manufacturer designation (CBMD): PH
  • Grooving width, nominal dimension (CW): 3.18 mm
  • Substrate Type: WC
  • TMC Order: 1
  • Lower cutting width tolerance (CWTOLL): 0.005 mm
  • vc max: 285 m/min
  • vc min: 265 m/min
  • vc rec: 270 m/min
  • Material classification level 1 (TMC1): P
  • Grooving width nominal dimension C: 3.18 mm
  • Corner radius right RE: 0.35 °
  • Grade: 1130
  • All ISO application areas: P



Specifications

ManufacturerSANDVIK COROMANT
ModelQD-NG-0318-035M-PH1130
Year2024
ConditionNew
Serial Number520 QD-NG-0318-035M-PH 1130
Stock Number.
