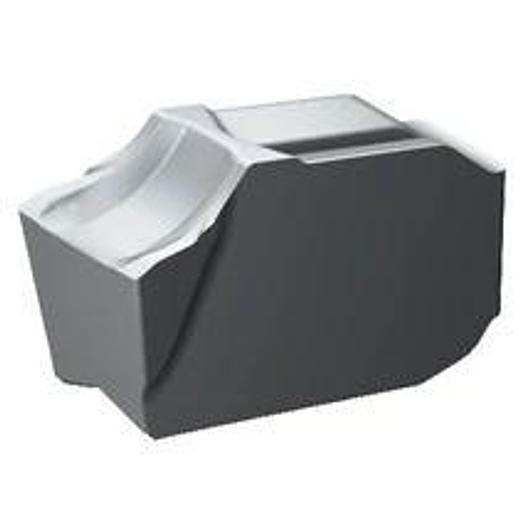

CoroMill QD indexable inserts

SANDVIK CoroMill QD insert

• Application Area: TP
• Corner radius, left (REL): 0.1 mm
• Corner radius, right (RER): 0.1 mm
• fz max: 0.29999999999999999 mm
• fz min: 0.01 mm
• fz rec: 0.16 mm
• Main clearance angle (AN): 7 deg
• Manufacturer item number: QD-NF-0250-010E-NL H13A
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HW
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.055 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill QD -size F
• Cutting direction (HAND): N
• Grade: H13A
• Chip breaker, manufacturer's designation (CBMD): NL
• Grooving width, nominal dimension (CW): 2.5 mm
• Substrate Type: WC
• TMC Order: 1
• Lower cutting width tolerance (CWTOLL): 0.005 mm
• vc max: 1050 m/min
• vc min: 910 m/min
• vc rec: 970 m/min
• Material classification level 1 (TMC1): N
• Grooving width nominal dimension C: 2.5 mm
• Corner radius right RE: 0.1 °
• Grade: H13A
• All ISO application areas: KN
